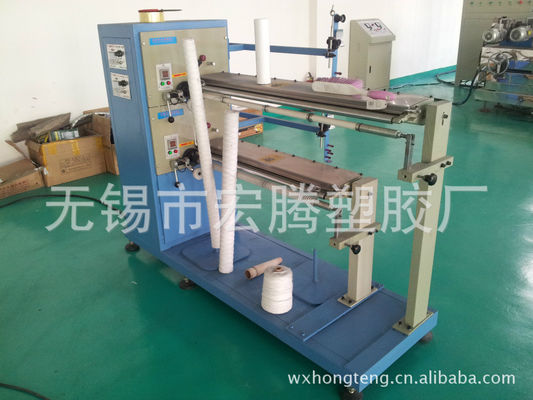

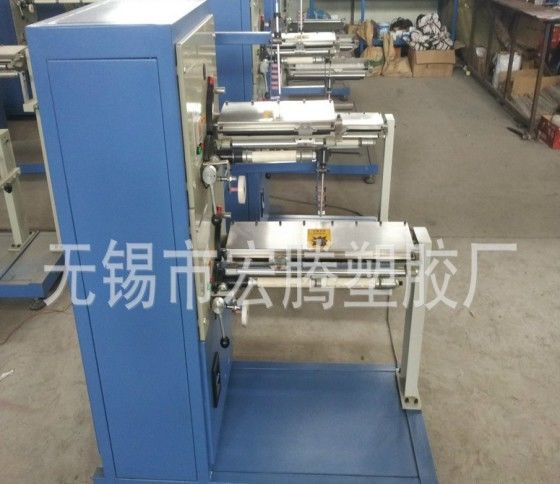

Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"

Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"

  • Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"
  • Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"
  • Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"
Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"
Product Details:
Place of Origin: Jiangsu
Brand Name: AJMS
Certification: CE, ISO
Model Number: AJMS001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD7000 - USD40000 per set
Packaging Details: wooden case
Delivery Time: 8-10 days upon date of receipting deposit
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: PP String Wound Filter Cartridge Machine Material: PP String Wound
Winding Line Speed: 40-280m/min Max Winding Dia: 200mm
Connecting Cable: 4X1.5mm R.S.J.MP Power Supply: Three Phase 380V/50HZ, One-phase 220V/50HZ
Motor Power: 180W/Spindle, 250W/Spindle Winding Frame Material: Polypropylene, Stainless Steel Etc.
Winding Frame Dia: 10, 12, 14, 16, 18, 20, 26, 28, 29, 30, 32, 40, 65mm,etc. Single Spindle Panel Size: (W*H) 390x308mm

Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"



All types of machine



1.Single Head:

10’’ single head 20’’ single head 30’’ single head 40’’ single head

5’’,50’’,60’’,70’’,80’’...100’’...





2.Double Head:

10’’&10’’ double head 10’’&20’’ double head 30’’&40’’ double head 20’’&30’’ double head 40’’&40’’,10’’&30’’,20’’&40’’....



Specifications of machine



Specification
1 type power Output(piece/hour) mark
2 10inch 180W 50-60
3 20inch 250W 45-55
4 30inch 370W 25-30
5 40inch 370W 20-25
6 10inch&10inch 360W 100-120
7 10inch&20inch 430W 95-115
10&20 machine dimension :(L*W*H) :1200*600*1250mm
30&40 machine dimension :(L*W*H) :1800*600*1250mm

After packing size
Machine type After packing size(L*W*H mm)

Net weight

(KG)

Gross weight

(KG)
Single
10inch 1050*650*1400 50 80
20inch 1200*600*1400 80 100
30inch 1500*650*1400 100 120
50inch 2150*650*1400 220 260
60inch 2300*650*1400 220 300
70inch 2600*650*1400 150 180
Double
10&10 inch 1050*650*1400 80 100
10&20 inch 1200*650*1400 110 150
20&30 inch 1500*650*1400 180 200
30&40 inch 1850*650*1400 220 260
40&40 inch 1800*650*1250 250 280



Payment & Delivery



Payment: T/T, 30% in advance and balance before shipment

Delivery time: 8-10 working days upon date of receipting deposit

Min order: 1 set

Guarantee time: 1 year

Default Voltage:3-Phase 380V/50HZ or 60HZ,1-Phase 220V/50HZ.if your side is different from us,we could change as your side.



Machine application

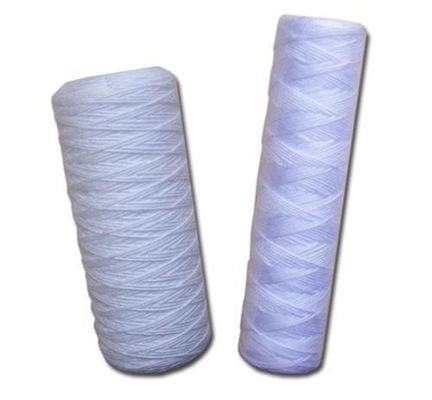

PP String Wound Filter Cartridge Machine is mainly used in the fields of water purification, Beverage, foodstuff, chemical, greases, pharmacies, electronics, environmental protection etc, it’s a dedicated machine for the winding of different yarns. This machine features novel design, high speed, low noise, high productivity, and good yarn forming ability. When the yarn full buzzer alarms, the machine will stop automatically. This machine has many advantage as such as easy operation; convenient and pick yarn change , low energy consumption.



Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"



Fully Automatic PP String Wound Filter Cartridge Machine 10"-100"
