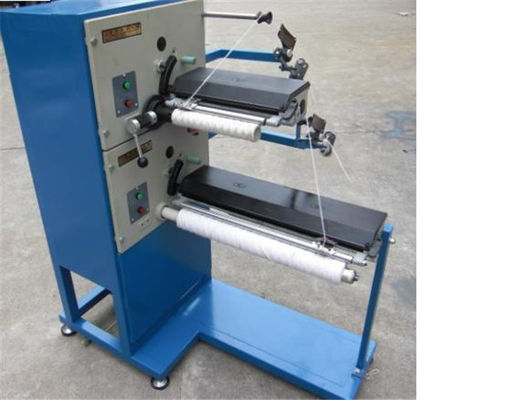

AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine

AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine

  • AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine
  • AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine
  • AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine
AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine
Product Details:
Place of Origin: Jiangsu
Brand Name: AJMS
Certification: ISO, CE
Model Number: AJMS002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000 - USD25000 per set
Packaging Details: wooden case
Delivery Time: 8-10 days upon date of receipting deposit
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: PP String Wound Filter Cartridge Machine Winding Line Speed: 40-280m/min
Max Winding Dia: 200mm Connecting Cable: 4X1.5mm R.S.J.MP
Power Supply: Three-phase 380V/50HZ, One-phase 220V/50HZ Motor Power: 180W/spindle, 250W/spindle
Motor Speed: 2800r/min Winding Frame Material: Polypropylene, Stainless Steel, Etc.
Winding Frame Inside Dia: 10, 12, 14, 16, 18, 20, 26, 28, 29, 30, 32, 40, 65,etc. Single Spindle Panel Size: (WxH) 390x308mm

AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine



All types of machine



1.Single Head:

10’’ single head 20’’ single head 30’’ single head 40’’ single head

5’’,50’’,60’’,70’’,80’’...100’’...





2.Double Head:

10’’&10’’ double head 10’’&20’’ double head 30’’&40’’ double head 20’’&30’’ double head 40’’&40’’,10’’&30’’,20’’&40’’....



Technical parameter



l Winding line speed: 40-280m/min, constant line speed is available according to product requirements
l Max. winding dia.: 200 mm(a diameter slightly above 200mm is available on client’s request)
l Connecting cable: 4×1.5mm R.S.J.MP
l Power supply: Our default voltage is three-phase 380V/50HZ, one-phase 220V/50HZ. There will be extra fee if you change the voltage.
l Motor power: 180W/Spinde,250W/Spindle
l Motor speed: 2800r/min
l Winding Frame Material: Polypropylene, stainless steel etc., on customer’s request.
l Winding Frame Inside Dia.: 10﹑12﹑14﹑16﹑18﹑20﹑26﹑28﹑29﹑30﹑32﹑40﹑65mm etc.

l Winding Reciprocation Stroke: It’s generally :

5＂(125+2mm)﹑10＂(250+4mm) ﹑20＂(500+8mm)﹑

30＂(750+12mm) ﹑40＂(1000+16mm) ﹑50＂(1250+20mm) ﹑

60＂(1500+24mm) ﹑70＂(1750+28mm) ﹑80＂(2000+32mm) ﹑

90＂(2250+36mm)﹑100＂(2500+40mm)

(Other reciprocation strokes are to be available to some degree on client’s request)



Single spindle panel sizes: (W×H)390×308mm.
Machine merits:
1﹑the motor drives the yarn winding shaft through a magnetic disk instead of through direct connection between them; the motor maintains original running state with the machine is braked to release reels; the tension of the yarn is automatically set to a constant value.
2﹑the machine speed is easy to regulate; wound yarn’s degree of tension and winding pattern can be easily regulated; the tension to the yarn is automatically set to a constant value,



Machine application

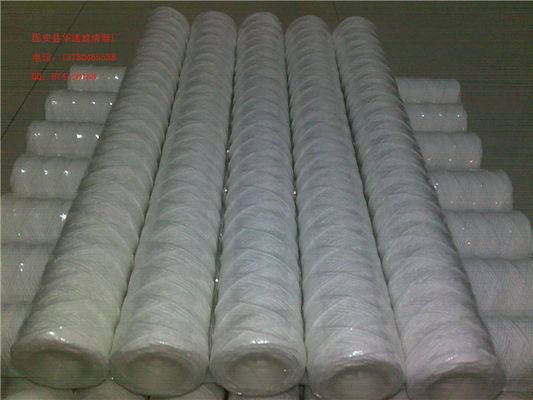

PP String Wound Filter Cartridge Machine is mainly used in the fields of water purification, Beverage, foodstuff, chemical, greases, pharmacies, electronics, environmental protection etc, it’s a dedicated machine for the winding of different yarns. This machine features novel design, high speed, low noise, high productivity, and good yarn forming ability. When the yarn full buzzer alarms, the machine will stop automatically. This machine has many advantage as such as easy operation; convenient and pick yarn change , low energy consumption.



AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine



AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine



AJMS double head 10" & 20" PP String Wound Filter Cartridge Making Machine
