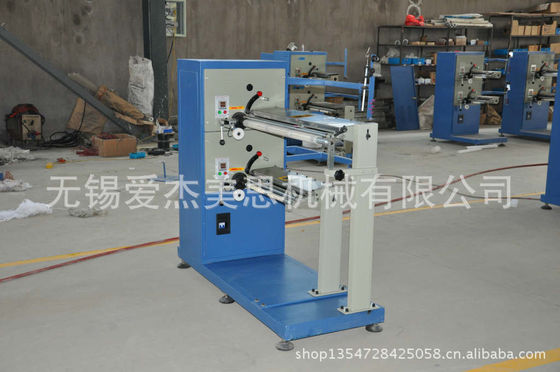

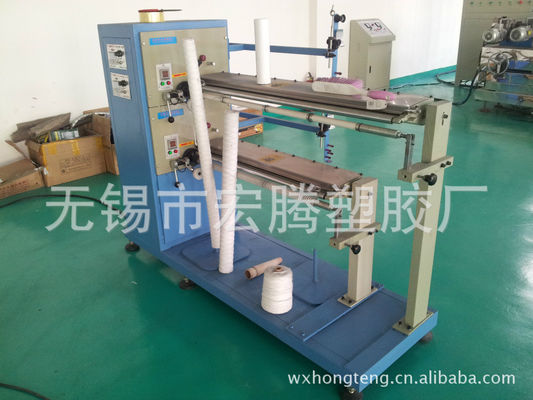

Name: Wuxi AJMS Newly Designed 10"-100" PP String Wound Filter Cartridge Makijng Machine
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS003
Price: 19,850.00 USD
Availability: InStock

Home Products 10"-100" PP String Wound Filter Cartridge Machine

Wuxi AJMS Newly Designed 10"-100" PP String Wound Filter Cartridge Makijng Machine

Product Details:

Place of Origin:	Jiangsu
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS003

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD7700 - USD32000 per set
Packaging Details:	by wooden case
Delivery Time:	8-10 days after receiving your deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

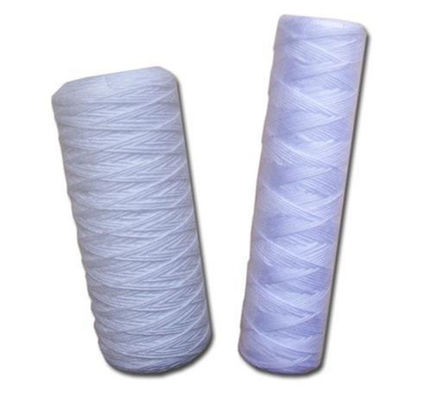

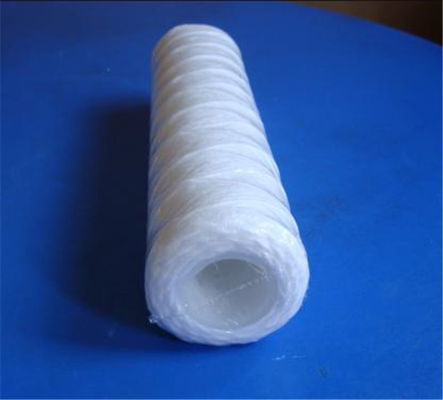

Commodity:	PP String Wound Filter Cartridge Making Machine	Winding Line Speed:	40-280m/min
Max Winding Dia:	200mm	Connecting Cable:	4X1.5mm R.S.J.MP
Power Supply:	Three-phase 380V/50HZ, One-phase 220V/50HZ	Motor Power:	180W/spindle, 250W/spindl
Motor Speed:	2800r/min	Winding Frame Material:	Polypropylene, Stainless Steel, Etc.
Winding Frame Inside Dia:	10, 12, 14, 16, 18, 20, 26, 28, 29, 30, 32, 40, 65, Etc.	Certification:	CE, ISO

Wuxi AJMS Newly Designed 10"-100" PP String Wound Filter Cartridge Makijng Machine

Specification

l Winding line speed: 40-280m/min, constant line speed is available according to product requirements

l Max. winding dia.: 200 mm(a diameter slightly above 200mm is available on client’s request)

l Connecting cable: 4×1.5mm R.S.J.MP

l Power supply: Our default voltage is three-phase 380V/50HZ, one-phase 220V/50HZ. There will be extra fee if you change the voltage.

l Motor power: 180W/Spinde,250W/Spindle

l Motor speed: 2800r/min

l Winding Frame Material: Polypropylene, stainless steel etc., on customer’s request.

l Winding Frame Inside Dia.: 10﹑12﹑14﹑16﹑18﹑20﹑26﹑28﹑29﹑30﹑32﹑40﹑65mm etc.

l Winding Reciprocation Stroke: It’s generally :
5＂(125+2mm)﹑10＂(250+4mm) ﹑20＂(500+8mm)﹑
30＂(750+12mm) ﹑40＂(1000+16mm) ﹑50＂(1250+20mm) ﹑
60＂(1500+24mm) ﹑70＂(1750+28mm) ﹑80＂(2000+32mm) ﹑
90＂(2250+36mm)﹑100＂(2500+40mm)
(Other reciprocation strokes are to be available to some degree on client’s request)

Single spindle panel sizes: (W×H)390×308mm.

Machine merits:

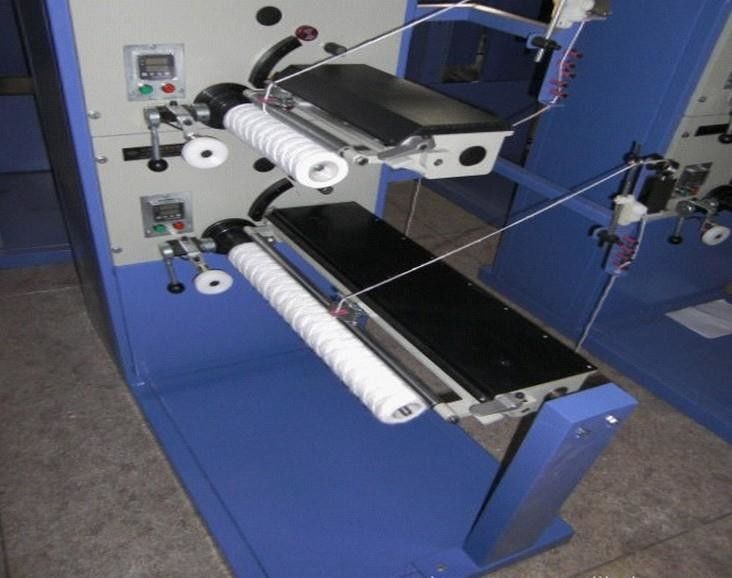

1﹑the motor drives the yarn winding shaft through a magnetic disk instead of through direct connection between them; the motor maintains original running state with the machine is braked to release reels; the tension of the yarn is automatically set to a constant value.

2﹑the machine speed is easy to regulate; wound yarn’s degree of tension and winding pattern can be easily regulated; the tension to the yarn is automatically set to a constant value,

Specifications of machines

Specification
1	type		power	Output(piece/hour)			mark
2	10inch		180W	50-60
3	20inch		250W	45-55
4	30inch		370W	25-30
5	40inch		370W	20-25
6	10inch&10inch		360W	100-120
7	10inch&20inch		430W	95-115
10&20 machine dimension :(LWH) :12006001250mm
30&40 machine dimension :(LWH) :18006001250mm

After packing size
Machine type		After packing size(LWH mm)			Net weight (KG)	Gross weight (KG)
Single
10inch		10506501400			50	80
20inch		12006001400			80	100
30inch		15006501400			100	120
50inch		21506501400			220	260
60inch		23006501400			220	300
70inch		26006501400			150	180
Double
10&10 inch		10506501400			80	100
10&20 inch		12006501400			110	150
20&30 inch		15006501400			180	200
30&40 inch		18506501400			220	260
40&40 inch		18006501250			250	280

Wuxi AJMS Newly Designed 10"-100" PP String Wound Filter Cartridge Makijng Machine

Service after sells
1.Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
2. Quantity and quality guarantee
a.Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Insurance company and shipping company will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b.Guarantee period and after-sales services: 12 months since date of normal running after machinery commissioning at buyer factory.
During this guarantee period, Wuxi AJMS will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, Wuxi AJMS will provide the buyer spare parts at cost price,and if need Wuxi AJMS repairman going to buyer factory,the buyer need afford the round-trip air tickets,visa fee, meals, accommodation and allowance for each staff.
c.Long-term service:
Wuxi AJMS will charge the buyer cost price of spare parts beyond 12 months and provide long-term technical guide.
3.Validity: 30 days since quotation date.
