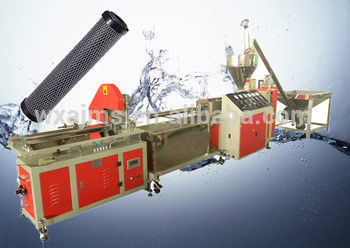

Name: Water Treating CTO Carbon Filter Cartridge Making Machine/ Production Line
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS006
Price: 23,000.00 USD
Availability: InStock

Home Products CTO Active Carbon Filter Cartridge Machine

Water Treating CTO Carbon Filter Cartridge Making Machine/ Production Line

Product Details:

Place of Origin:	Jiangsu
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS006

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD12000 - USD34000 per set
Packaging Details:	by wooden case
Delivery Time:	7-10 days after receiving your deposit
Payment Terms:	T/T, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Commodity:	CTO Carbon Filter Cartridge Making Machine	Machine Material:	Stainless Steel 304
Length Requirement:	10", 20", 30", 40"...100"	Weight:	1 Ton
Rated Power:	16.45KW	Actural Power:	8KW
Raw Material:	Active Carbon (Granule) And PE BGule (Powder)	Interal Diameter:	9mm-80mm
Outer Diameter:	29mm-120mm	Layout:	20-30 Square Meter Is Better

Water Treating CTO Carbon Filter Cartridge Making Machine/ Production Line

Action 1 Technical parameter

Production capacity	30-60 mesh Coal carbon production speed 50-53 seconds/pc based on 10’’,ID 38 mm,OD 63 mm.
	80-200 mesh coconut shell carbon production speed 1 minute/pc based on 10’’,ID 38 mm,OD 63 mm.
Install power	17.25 KW
Actual power	8 KW

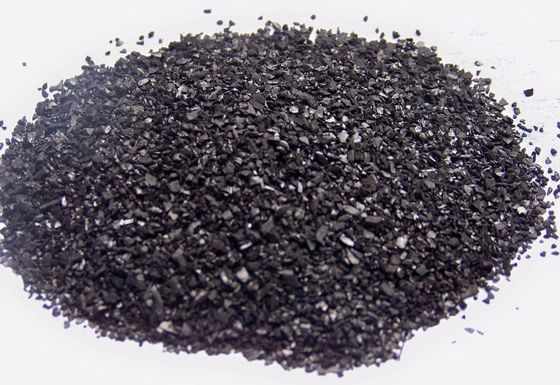

Raw material	1.coal carbon (30-60 mesh)+LDPE 60-80 mesh (PE Glue powder)
	2.coconut shell carbon (30-60 mesh)+LDPE 60-80 mesh (PE Glue powder)
	3.coconut shell carbon (80-150 mesh /80-200 mesh)+Special glue powder (not LDPE) Now we have used 80-200 mesh coconut shell carbon mixed special glue, Final CTO same with sintering carbon filter for absorbing water,testing after 13 tons water still have 85%-90% remove residual rate.
Inner diameter (ID)	9 mm-80 mm is common,max. arrive 120 mm
Outer diameter (OD)	29-120 mm is common,max.arrive 2000 mm. (OD larger,if ID larger it will better for big diameter production)
Length (mm)	5’’,10’’,20’’,30’’,40’’ (adjustable on auto cutter)
Whole line N.W.	1 ton
Layout	13.5 m²,20-30 m²is better.
Voltage	Default three phase 380 V,50/60HZ,but ABB inverter accept within 350-450 V.
Description of CTO filters	Used for oil,chemical industry,electronic,medicine,air filtration and food industry
Using life of CTO filters	3-6 months (depands on quality of water)
CTO filters usage	Remove chlorine,chemical,color,odor and micron impurity. (the third filter in water filter machine protect Ro element)
Advantages of the CTO machine	1.Electric-saving
	2.Operation easily
	3.Production speed fast then common original sintering carbon filters production

Action 2 Filtration of different diameters CTO filters

OD (mm)	ID (mm)	Total purification (L)	Filtration efficiency
105	40	100000	>90%
90	30	80000	>90%
63	25	60000	>90%
63	33	50000	>90%
63	35	45000	>90%
63	38	40000	>90%
40	13	1400	>90%
32	10	800	>90%
26	10	500	>90%

Action 3 Operation data of CTO filters

Operation temperature

Filtration life

Max.operation pressure

Max.Flow

4 ^oC-52^oC

10’’ standard:3-6 months/2500G

10’’ Big blue:4-6 months/5500G

*Depands on water quality

Level of contaminants

100 psi

10’’ standard:2.5GPM

10’’ Big blue:5GPM

(1.5-2 kg/cm²)

Action 4 Installation and training

1.Beofre shipping,our designer engineer will make a detailed installation draft as different clients’s plant situation.

2.Due to different cleints used material,temperature,and plant situation all different: we more advise our engineer group to clients side for intsllationa and trianing.

7-10 days is available,clients only provide the around air tickets,hotel and meal,not need any extra commission. Visa cost AJMS will provide.

3.Clients also could take raw material to us for testing and training.

Action 5 After sale service

1.Spare parts: manufacturer will provide 1 year for free without human factors,spare parts according to spare part list show.

2.Whole life tech guidance.

3.AJMS have 10 exhibitions oversea every year,thus we have feedback plan in clients plant for more future updating.

Water Treating CTO Carbon Filter Cartridge Making Machine/ Production Line
