Name: ISO Approved High Capacity CTO Block Carbon Filter Cartridge Making Mchine
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS1802
Price: 17,000.00 USD
Availability: InStock

Home Products CTO Active Carbon Filter Cartridge Machine

ISO Approved High Capacity CTO Block Carbon Filter Cartridge Making Mchine

Product Details:

Place of Origin:	China
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS1802

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD15500 - USD18500/set FOB Shanghai port
Packaging Details:	packaging by plywood case.
Delivery Time:	within 20 days
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets

Contact Now

Detailed Product Description

Product Name:	CTO Block Filter Cartridge Mking Machine	Rated Power:	16.45KW
Actual Power:	8KW	Length:	10", 20", 30"...100"
OD:	29mm-120mm	ID:	9mm-80mm
Layout:	15 Square Meters At Least, 20-30 Sqaure Meters Is Better	Raw Material:	Active Carbon + PE Gule Powder
Weight:	950KG	Capacity:	300mm-400mm/min If Water Cool Carbon Cartridge Directly

ISO Approved High Capacity CTO Block Carbon Filter Cartridge Making Mchine

Machine Introduction
CTO active carbon filter is made by high-quality fruit shell carbon and coal activated carbon as raw material, as well as food grade adhesive, with high technology and special technique. It combines the adsorption, filtration, interception and catalysis functions together. It can effectively remove the organic matter, residual chlorine and other radioactive substances in the water, and it also can decolor and remove the peculiar smell. It is an ideal new generation products in the air purification industry.

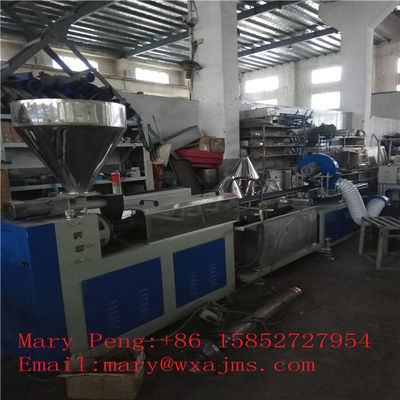

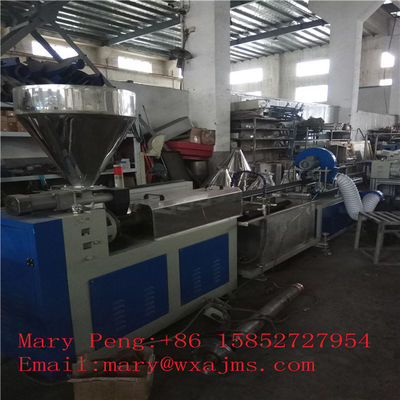

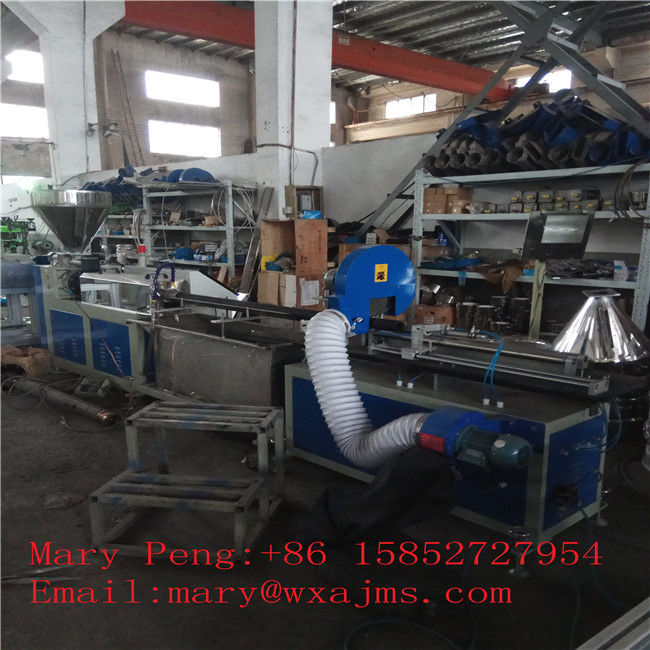

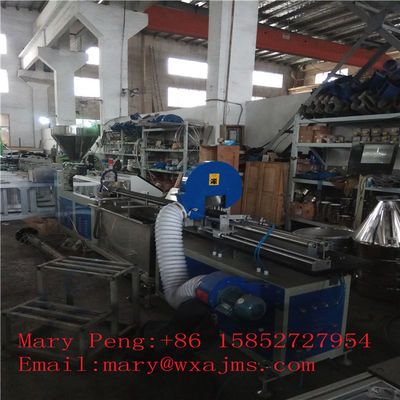

CTO active carbon filter cartridge block making machine/ production line includes the folllowing parts:

Parameter

CTO active carbon filter cartridge block making machine/ production line could work 24 hours without stop
Installed power	16.45kw
Running power	8kw
Raw material	88%-90% Active carbon (granule) 10%-12% PE (powder) (The mesh number of activated carbon determines the proportion of PE powder.)
Inner diameter	9mm-80mm(customized)
Outside diameter	29mm-120mm(customized)
Length	5”, 10”, 20”, 30”, any length according to customer’s request
Production capacity	250mm-350mm/min
Voltage	three-phase 380V/50HZ one-phase 220V/50HZ
Note: One extruder can only make one inner diameter and one outer diameter. If you want to produce filters with different diameters, you can change some parts of extruder.

Dust-free auto cutter

If you want to know more information about the raw material you need for CTO Active Carbon Filter Cartridge Block Making Machine/ Production Line, please feel free to let us know.

Application Areas
CTO active carbon filter cartridge is suitable for the purification of water and liquid used in semiconductor, electronics components, printed circuit boards, electroplating industry, food and beverage industry.
Apply to the following industries:
1. Electronics, electric power industry: pure water, gas, electroplating liquid, print line edition and so on.
2. Chemical industry, petrochemical industry: solvents, coating, magnetic pulp, detergent, liquid wax and so on.
3. Pharmaceutical industry: hospital-used water, pharmaceutical injection, traditional Chinese medicine oral liquid and so on.
4. The food industry: food, beverage, drinking water, alcohol and so on.

All kinds filter machine in our company
1.PP String wound filter cartridge machine
2.CTO Carbon filter cartridge production line
3.1E&1M,2E&2M,3E&3M,Pp spun filter cartridge making machine/pp melt blown filter cartridge machine
.........................now we are create more new fields .....................................

Certificate
We have passed CE and ISO 9001:2008.
