Name: CTO Active Carbon Filter Cartridge Machine For Waste Water Treatment
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS1802
Price: 17,250.00 USD
Availability: InStock

Home Products CTO Active Carbon Filter Cartridge Machine

CTO Active Carbon Filter Cartridge Machine For Waste Water Treatment

Product Details:

Place of Origin:	China
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS1802

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD15000-USD19500 per set
Packaging Details:	wooden case.
Delivery Time:	within 20 working days
Payment Terms:	L/C, T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	CTO Active Carbon Filter Cartridge Machine	Rated Power:	16.45KW
Actual Power:	8KW	Raw Material:	Coal Carbon/ Coconut Shell Carbon And PE Glue Powder
Capacity:	55-60 Seconds/ Pcs (10" Size)	Voltage:	Three-phase 380V/50HZ
Length:	10", 20", 30"...	OD:	29mm-120mm
ID:	10"-80"	Layout:	20-30m2
Delivery Time:	20 Working Days

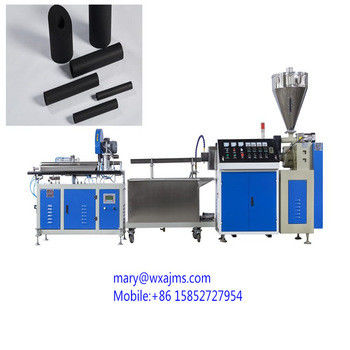

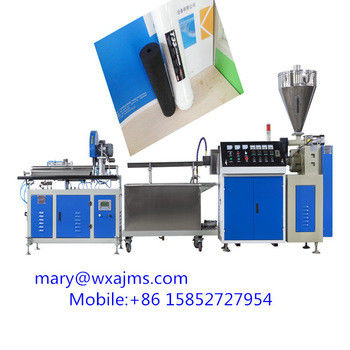

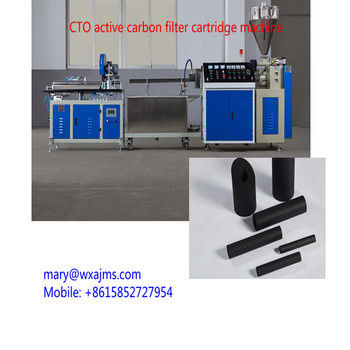

CTO Active Carbon Filter Cartridge Machine For Waste Water Treatment

Production capacity
1pc/min(base on 10*2.5inch) (Can not use water cooling the carbon cartridge directly,this will wet the cartridge,easily mildew and pollution)
Main features of CTO carbon filter cartridge machine
Adding alert system to monitor the whole production line
Each part produced by famous company.ABB,OMRON,SCHNEIDER...
Advantages
1. Whole production is fully automatic,no need people to operate 2. Advanced technology, saving electricity
The parameter of the production line
Voltage	3P/380V/50Hz 1P/220V/50Hz
Rated power	16.45KW
Actual power	8kw
Raw material	Active Carbon(Granule) and PE Glue(Powder) Active Carbon percentage is 88%-90%.the other is 10%-12%.
Inner diameter	10mm-80mm(default 39 or 40mm)
Outer diameter	20mm-120mm(default 62mm)
Length	5’’,10’’,20’’,30’’,40’’.............100’’
Machine weight	1Ton
Mark:One extruder just make one kind of inner diameter and outer diameter.If you want to do other diameter(≤65mm), need to replace barrel and screw,if diameter beyond 65mm,advice big extruder is better
QUOTATION: FOB SHANGHAI USD13,500.00 PAYMENT:20%-30% DEPOSIT,BALANCE BEFORE SHIPPING WARRANTY:2 YEARS AFTER INSTALLATION AT BUYER’S FACTORY PACKING:EACH PART WRAPPED FILM BAGS INTO 6 PLYWOOD CASES WEIGHT:1.5TON 10CBM DELIVERY:15-20WORKING DAYS

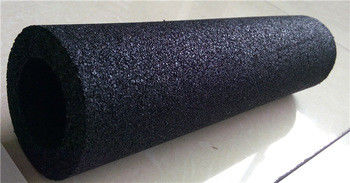

Activated carbon filter is made by high-quality fruit shell carbon and coal activated carbon as raw material, as well as food grade adhesive, with high technology and special technique. It combines the adsorption, filtration, interception and catalysis functions together. It can effectively remove the organic matter, residual chlorine and other radioactive substances in the water, and it also can decolor and remove the peculiar smell. It is an ideal new generation products in the air purification industry.

1. Electronics, electric power industry: pure water, gas, electroplating liquid, print line edition and so on.
2. Chemical industry, petrochemical industry: solvents, coating, magnetic pulp, detergent, liquid wax and so on.
3. Pharmaceutical industry: hospital-used water, pharmaceutical injection, traditional Chinese medicine oral liquid and so on.
4. The food industry: food, beverage, drinking water, alcohol and so on.

CTO Active Carbon Filter Cartridge Machine For Waste Water Treatment
