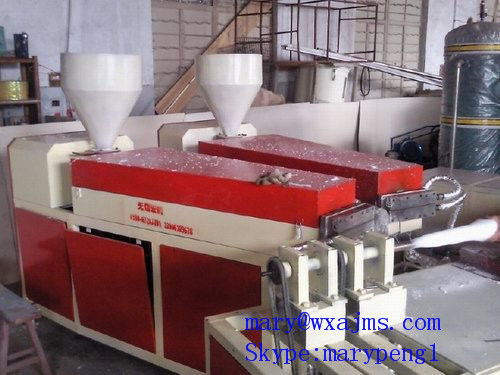

Name: AJMS 2e&2m PP Melt Blown Filter Cartridge Machine / Production Line
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS008
Price: 22,500.00 USD
Availability: InStock

Home Products PP Melt Blown Filter Cartridge Machine

AJMS 2e&2m PP Melt Blown Filter Cartridge Machine / Production Line

Product Details:

Place of Origin:	Jiangsu
Brand Name:	AJMS
Certification:	ISO, CE
Model Number:	AJMS008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD11000 - USD34000 per set
Packaging Details:	by wooden case.
Delivery Time:	8-10 days after receiveing your deposit
Payment Terms:	L/C, T/T
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Commodity:	2E&2M PP Melt Blown Filter Cartridge Machine	Machine Material:	Stainless Steel 304
Rated Power:	50KW	Actual Power:	25-30KW
Raw Material:	Polypropylene (fiber Grade)	Insider Diameter:	28mm (15mm-40mm Is For The Customer's Request)
Outer Diameter:	38mm-120mm (on The Basis Of ID 28mm)	Length:	10", 20", 30", 40"...100"

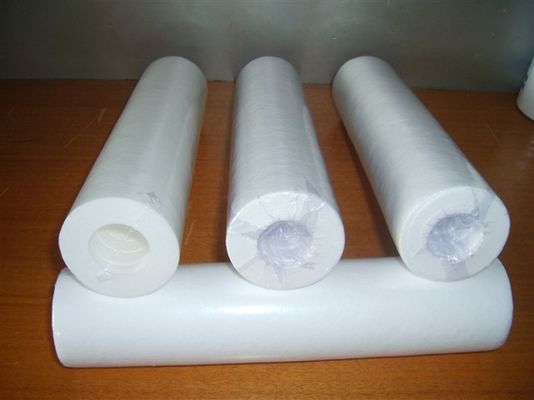

Filter Precision:	5um, 10um, 20um, 30um...100um	Surface Of Filter Cartridge:	Smooth, Grooves, Dotted, Graining Toll / Stripe, Logo
Machine Weight:	3.8 Ton	Layout:	At Least 30m2

AJMS 2e&2m PP Melt Blown Filter Cartridge Machine / Production Line

Specification

Capacity

3800-4500 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,100-110 gram

Rated Power

50 KW

Actual Power

25-30 KW

Raw Material

Polypropylene ( fiber grade)

Insider Diameter

28 mm (15 mm-40 mm is for customer’s request)

Outer Diameter

38 mm-120 mm( on the basis of ID 28 mm.)

Length

10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’

Filter precision

1 um,5 um,10 um,20 um,30 um...............100 um

Surface of filter cartridge

Smooth surface orange peel surface
Grooves surface(grooving machine )
Dotted surface (this device we have added on receiving device )
Graining toll/stripe surface (extra tool)
Logo on surface (carving machine produce logo & company name on the surface of pp filter)

Machine weight

3.8 Ton ,4 Ton after packing

Layout

50 m 2 is enough ,at least 30 m 2,100 m2 is best.

Operation conditions

1)Max operating temperature: 70°C
2) Materials: 100% polypropylene
3) Interface of filter cartridge: flat
4) Max differential pressure: Positive 0.4Mpa

Filter precision (μ m)	1	3	5	10	20	30	50
outside precision (μ m)	10-15	15-25	25-35	30-40	35-50	40-60	60-90
Max particle (μ m)	15	25	35	40	50	60	90
Flow (L/min)	10	14	17	20	24	28	32

Applicable fields:
1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
2. Chemical & petrochemical Industries:Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc
3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
4. Food Industry: Food, Drink, Drinking Water, Alcohol etc.

Spare parts for free

Heating loop inside of extruder: 10 pcs	Sensors: 5 pcs	Contactor: 5 pcs	Heating Pipe inside of air heating machine: 5 pcs
Bearing: 3 pcs	Filter Net: 1 square meters	Temperature Controller: 3 pcs	Tool Box: 1 set
Insulated pipe: 4 pcs	Spin Button: 5 pcs	Blade: 50 pcs	Insulated Asbestos: 5 pcs
Porcelain Bead&Line: some	Heating Gun: 1 set	Needles: 2 packages	Ammeter: 3 pcs
Heating Pipe inside of moulds: 8 pcs	Heating Pipe inside of cleaning oven: 1 pc	Digital Controller: 2 pcs	Button(Red/Green): 5pcs/kind

After sales service
1.Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
2.Arrangement for inspection, installation and testing work

After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
We will prepare for visa application for our engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory for free,not need commission for engineer.
The Buyer will afford the round-trip air tickets .The buyer is also responsible to bear expenses generated, e.g.meals, accommodation for each engineer.
We recommend your labors to have a free training for 5-7 days at Seller’s factory.
IF your labors don’t have a free training at seller’s factory.our engineers will give training lessons to labors at buyer’s factory. Also not need commission.
IF buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.

3. Quantity and quality guarantee
a.Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Insurance company and shipping company will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b.Guarantee period and after-sales services: two years since date of normal running after machinery commissioning at buyer factory.
During this guarantee period, Wuxi AJMS will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, Wuxi AJMS will provide the buyer spare parts at cost price,and if need Wuxi AJMS repairman going to buyer factory,the buyer need afford the round-trip air tickets,meals, accommodation.
c.Long-term service:
Wuxi AJMS will charge the buyer cost price of spare parts beyond 12 months and provide long-term technical guide.
4.Validity
90 days since quotation date.
