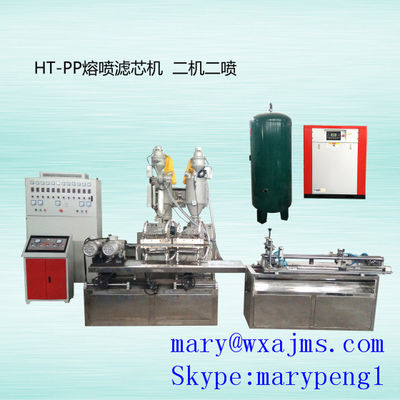

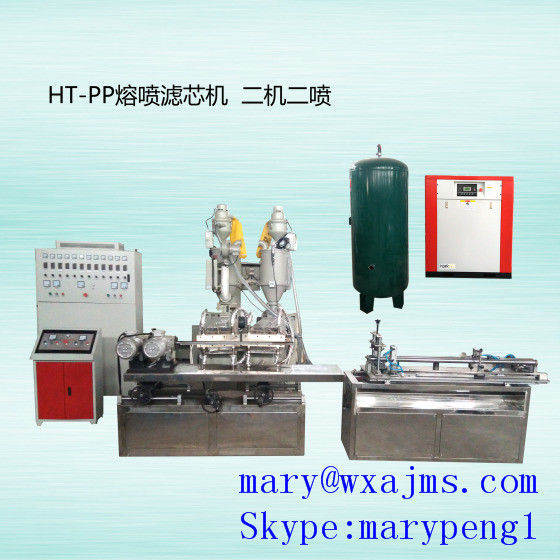

2e&2m PP Spun Filter Cartridge Making Machine / Melt Blown Filter Making Machine
1. Specification
| Capacity |
3800-4500 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,100-110 gram |
| Rated Power |
50 KW |
| Actual Power |
25-30 KW |
| Raw Material |
Polypropylene ( fiber grade) |
| Insider Diameter |
28 mm (15 mm-40 mm is for customer’s request) |
| Outer Diameter |
38 mm-120 mm( on the basis of ID 28 mm.) |
| Length |
10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’ |
| Filter precision |
1 um,5 um,10 um,20 um,30 um...............100 um |

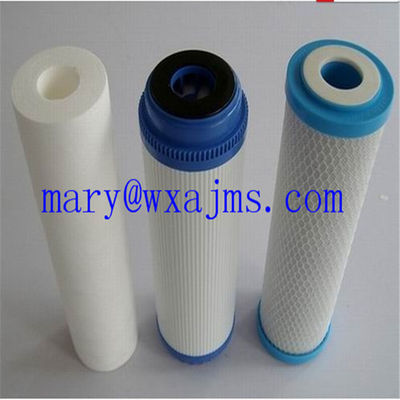

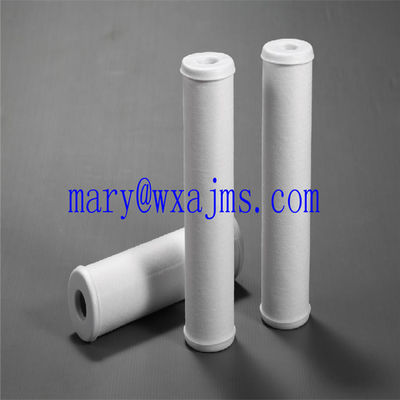

| Surface of filter cartridge |
Smooth surface orange peel surface
Grooves surface(grooving machine )
Dotted surface (this device we have added on receiving device )
Graining toll/stripe surface (extra tool)
Logo on surface (carving machine produce logo & company name on the surface of pp filter)
|
| Machine weight |
3.8 Ton ,4 Ton after packing |
| Layout |
50 m 2 is enough ,at least 30 m 2,100 m2 is best. |
|
Operation conditions
|
1)Max operating temperature: 70°C
2) Materials: 100% polypropylene
3) Interface of filter cartridge: flat
4) Max differential pressure: Positive 0.4Mpa
| Filter precision (μ m) |
1 |
3 |
5 |
10 |
20 |
30 |
50 |
| outside precision (μ m) |
10-15 |
15-25 |
25-35 |
30-40 |
35-50 |
40-60 |
60-90 |
| Max particle (μ m) |
15 |
25 |
35 |
40 |
50 |
60 |
90 |
| Flow (L/min) |
10 |
14 |
17 |
20 |
24 |
28 |
32 |
Applicable fields:
1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc
2. Chemical & petrochemical Industries:Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc
3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid
4. Food Industry: Food, Drink, Drinking Water, Alcohol etc.
|
2. Main features of pp melt blown filter cartridge machine
Part A. Good quality
each part produced by famous company
(inverter is ABB,senor,solid state reply and other electric machine is SCHNEIDER,OMRON)
Part B. Electric-saving
1). a leading manufacturer,producing the machine for more than 20 years.
2). Advanced technology,saving electric(power is about 25 KW-30 KW)
3).Electric consumption:0.24 KW*H/piece(10 inch,135 g).
Part C. Large capacity
1.3800(130 gram,10’’) pcs----4500pcs (110 gram,10’’)/24 hours.
Filter weight can be adjusted on the machine.normally the weight is about 90 g-150 g.
2.Mold length is 400 mm,two molds total is 800 mm ,we also could use 550 mm moulds now enough spinning pp.strong pressure.
Auto feeding-auto receiving -auto cutting-auto collecting
Part D. Export history
1).Machine Market:Russia,Ukraine,Netherlands,Korea,Germany,France,Italy,Japan,Iran,India,Pakistan,Vietnam,Egypt..
2).We have new upgrade our production line,it will be different from others.
Part E. Payment & Delivery
| Payment |
1.)T/T,30% deposit and balance before shipment.
2.)30% T/T in advance,70% by L/C at sight.
|
| Delivery time |
15 days against deposit |
| Packing |
Packed by plywood case,one set pp machine 20 m 3,load in one 20 ’’ container |
| Voltage |
default is three-phase 380 V/50 Hz,one phase 220 V/50 Hz,if your side is different from us,please tell us about it. |
