Name: New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS1801
Price: 21,000.00 USD
Availability: InStock

Home Products PP Melt Blown Filter Cartridge Machine

New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine

Product Details:

Place of Origin:	China
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS1801

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD17000-25000 FOB Shanghai
Packaging Details:	by plywood case.
Delivery Time:	15-20m working days against your deposit
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets/ month

Contact Now

Detailed Product Description

Product Name:	PP Melt Blown Filter Cartridge Making Machine	Raw Material:	100% Polypropylene
Rated Power:	50KW	Actual Power:	25-30KW
ID:	28mm (15-40mm Is For Customer's Request)	OD:	38mm-120mm
Length:	10", 20", 30"...100"	Weight:	4 Tons
Layout:	50 Square Meters Is Enough	Filter Precision:	1um, 5um, 10um, 20um, 30um...100um

New Technology Of Fully Automatic PP Melt Blown Filter Cartridge Making Machine

Applicable fields:

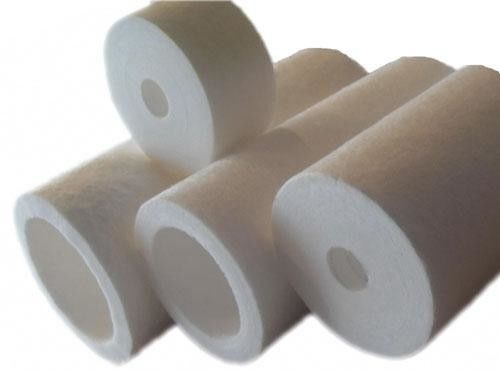

PP melt blown filter cartridge is mainly used in the fields of pure water manufacturing pretreatment, circulating cooling water, drinking water, laboratory water, boiler water, oil field water injection,chemical,pharmaceutical,electroplating,printing,paint,color film processing, fuel oil, beer, beverage industries filtration and so on.

Product Description:

Specification:	1E&1M	2E&2M	3E&3M
Output (24 hours)	1500-2200 pcs	3500-4200 pcs	4800-5500 pcs
Rated Power (KW)	35	55	75
Actual Power (KW)	14-17	28-32	39-48
Raw Material (Fiber Grade)	PP	PP	PP
Inner Diameter (mm)	28 (other internal diameter)	28 (other internal diameter)	28 (other internal diameter)
Outer Diameter (mm)	30-200 (basis of ID28MM)	30-200 (basis of ID28MM)	30-200 (basis of ID28MM)
Length (inch)	10''20''30''40''...100''	10''20''30''40''...100'	10''20''30''40''...100''
Filter Precision (micron/um)	1um,5um,10um,15um...100um	1um,5um,10um,15um,...100um	1um,5um,,...100um
Surface Of Filters	smooth surface, orange peel surface, grooves surface, dotted surface,...	smooth surface, orange peel surface, grooves surface, dotted surface,...	smooth surface, orange peel surface, grooves surface, dotted surface,...
Weight (Ton)	1.5	3.9	4.9
Voltage	220/380/others	220/380/others	220/380/others
Layout (m2 )	best 20	50 (best 150)	50 (best 150)
Condition	New	New	New

Marked:
1.Raw material only living up to fiber grade,production line could produce filter cartridges.
2.Inside diameter and outside diameter could according to your request for adjusting.
3.Filter precision could according to your request for adjusting.
4.Length is 10''-100'',this could adjust by cutting machine.
5.Voltage default is 380 V/50 Hz,we make different voltage as your request .
6.If you want to make the special specification filter cartridges, our engineer could devote machine according to your request.

Operation conditions:
1). Max operating temperature: 70°C
2) Materials: 100% polypropylene
3) Interface of filter cartridge: flat
4) Max differential pressure: Positive 0.4Mpa

Product Description:

Specification:	1E&1M	2E&2M	3E&3M
Output (24 hours)	1800-2200 pcs	3800-4200 pcs	4800-5200 pcs
Rated Power (KW)	30	50	70
Actual Power (KW)	14-17	25-30	37-45
Raw Material (Fiber Grade)	pp	pp	pp
Inner Diameter (mm)	28 (15-40)	28 (15-40)	28 (15-40)
Outer Diameter (mm)	38-400	38-200	38-200
Length (inch)	10''20''30''40''...100''	10''20''30''40''...100'	10''20''30''40''...100''
Filter Precision (micron/um)	1um,5um,10um,15um...100um	1um,5um,10um,15um,...100um	1um,5um,10um,15um,...100um
Surface Of Filters	smooth surface,orange peel surface,grooves surface,dotted surface,...	smooth surface,orange peel surface,grooves surface,dotted surface,...	smooth surface,orange peel surface,grooves surface,dotted surface,...
Weight (Ton)	1.5	3.8	4.5
Voltage	380/415/220	380/415/220	380/415/220
Layout (m2 )	best 20	30 (best 50)	70
Automatic Grade	CTO	CTO	CTO
Condition	New	New	New
