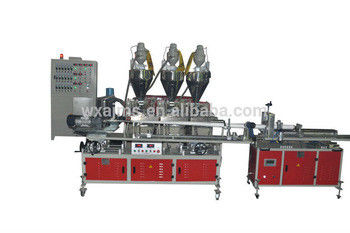

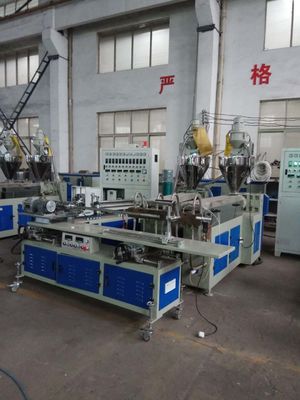

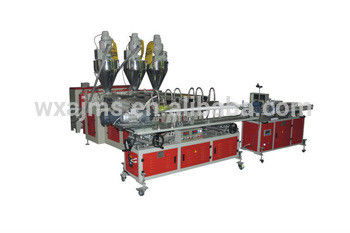

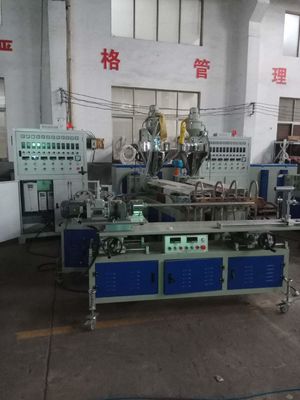

Name: High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS1801
Price: 51,500.00 USD
Availability: InStock

Home Products PP Melt Blown Filter Cartridge Machine

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line

Product Details:

Place of Origin:	China
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS1801

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD48000-55000 per set
Packaging Details:	packaged by wooden case.
Delivery Time:	20 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Product Name:	3E&3M PP Melt Blown Filter Cartridge Production Line	Capacity:	4800pcs-5200pcs
Rated Power:	75KW	Actual Power:	37-45KW
Gross Weight:	4500kgs	Raw Material:	Poly Propylene
Outside Diameter:	38mm-120mm (on The Basis Of ID 28mm)	Inside Diameter:	28mm (15mm-40mm Is Available For Customer's Request)
Length:	10", 20", 30"...100"	Filter Precision:	5um, 10um, 20um...100um
Layout:	70m2 Is Enough, 50m2 At Least, 100m2 Is Better	Wechat:	+86 15852727954

High Capacity 3E&3M PP Melt Blown Filter Cartridge Production Line

Specification

Capacity	5000-6000 pcs/24 hours(on basic of 10 ’’,ID 28 mm,OD 55-63 mm,100-110 gram
Rated Power	75 KW
Actual Power	37-45 KW
Raw Material	Polypropylene ( fiber grade)
Insider Diameter	28 mm (15 mm-40 mm is for customer’s request)
Outer Diameter	38 mm-120 mm( on the basis of ID 28 mm.)
Length	10 ’’,20 ’’,30 ’’,40 ’’.............100 ’’
Filter precision	1 um,5 um,10 um,20 um,30 um...............100 um
Surface of filter cartridge	Smooth surface orange peel surface Grooves surface(grooving machine ) Dotted surface (this device has added on receiving device) Graining toll/stripe surface (extra tool) Logo on surface (carving machine produce logo & company name on the surface of pp filter)
Machine weight	4 Ton,4.5 Ton After Packing
Layout	70 m 2 is enough ,at least 50 m 2,100 m2 is best.

Brand name of parts in production line

Inverter: ABB	Temperature Controller: OMRON	Breaker: Schneider
Relays: SCHNEIDER	MCBs: SCHNEIDER	Roots Blower: Taiwan,China

Sparte parts for free

Heating loop inside of extruder: 10 pcs	Sensors: 5 pcs	Contactor: 5 pcs	Heating Pipe inside of air heating machine: 5 pcs
Bearing: 3 pcs	Filter Net: 1 square meters	Temperature Controller: 3 pcs	Tool Box: 1 set
Insulated pipe: 4 pcs	Spin Button: 5 pcs	Blade: 50 pcs	Insulated Asbestos: 5 pcs
Porcelain Bead&Line: some	Heating Gun: 1 set	Needles: 2 packages	Ammeter: 3 pcs
Heating Pipe inside of moulds: 8 pcs	Heating Pipe inside of cleaning oven: 1 pc	Digital Controller: 2 pcs	Button(Red/Green): 5pcs/kind
