PP Melt Blown Filter Cartridge Machine/PP Spun Filter Cartridge Making Machine

PP spun melt blown filter cartridge making machine adopts full automatic control system, high production capacity, large efficiency, has long life. And our machines use variable frequency speed control system ,low power consumption, less wastage, good quality, stable performance, high filter precision. The multi-layer structure of PP cartridge can filter water by different layers.



The regular inner diameter is 28 mm,30 mm, outer diameter usually is 58 mm ~63 mm, if you need other diameters, just change receiver components .



Type	The total power	Actual power	The raw material	Production capacity	Weight of filter cartridge
2E&2M	50kw	25kw	PP(Ploypropylene)	3800-4200pcs/24h	95-180kg(adjustable)
3E&3M	70kw	37kw	PP(Ploypropylene)	4800-5200pcs/24h	95-180kg(adjustable)



PP Spun Filter Cartridge Making Machine 1E&1M,2E&2M,3E&3M













Applicable fields:

1. Electronic, power Industries: Pure Water, Gas, Electroplating Liquid, Presswork etc



2. Chemical & petrochemical Industries: Solvent, Paint, Magnetism paint, Detergent, Liquid wax etc



3. Medicine & Pharmaceutical: Hospital Water, Injection and Oral Liquid



4. Food Industry: Food, Drink, Drinking Water, Alcohol etc

Product Description:

Specification:	1E&1M	2E&2M	3E&3M
Output (24 hours)	1800-2200 pcs	3800-4200 pcs	4800-5200 pcs
Rated Power (KW)	30	50	70
Actual Power (KW)	14-17	25-30	37-45
Raw Material (Fiber Grade)	pp	pp	pp
Inner Diameter (mm)	28 (15-40)	28 (15-40)	28 (15-40)
Outer Diameter (mm)	38-400	38-200	38-200
Length (inch)	10''20''30''40''...100''	10''20''30''40''...100'	10''20''30''40''...100''
Filter Precision (micron/um)	1um,5um,10um,15um...100um	1um,5um,10um,15um,...100um	1um,5um,10um,15um,...100um
Surface Of Filters	smooth surface,orange peel surface,grooves surface,dotted surface,...	smooth surface,orange peel surface,grooves surface,dotted surface,...	smooth surface,orange peel surface,grooves surface,dotted surface,...
Weight (Ton)	1.5	3.8	4.5
Voltage	380/415/220	380/415/220	380/415/220
Layout (m2 )	best 20	30 (best 50)	70
Automatic Grade	CTO	CTO	CTO
Condition	New	New	New

Marked:

1.Raw material only living up to fiber grade,production line could produce filter cartridges.

2.Inside diameter and outside diameter could according to your request for adjusting.

3.Filter precision could according to your request for adjusting.

4.Length is 10''-100'',this could adjust by cto cutting machine.

5.Voltage default is 380 V/50 Hz,we could according voltage in different country according to your request.

6.If you have some special specification filter cartridges,our engineer could devote machine according to your request.



Operation conditions:

1). Max operating temperature: 70°C

2) Materials: 100% polypropylene



3) Interface of filter cartridge: flat



4) Max differential pressure: Positive 0.4Mpa



Parts of Production Line:

Original Type:	New Type:
large controller table,air compressor,air tank,air heating machine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine	large controller table,roots blower,air heating mchine,extruder,auto feeding machine,mold,receiveing device,cto cutting machine,mold cleaning machine

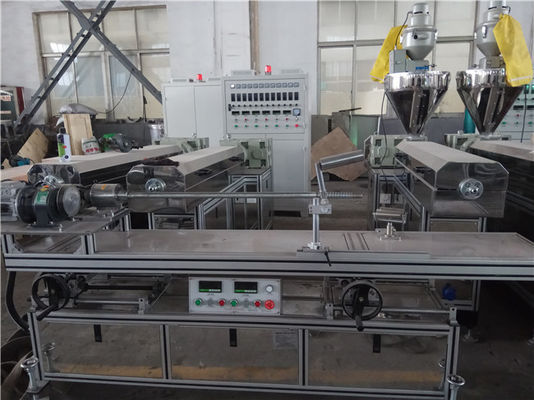

Details of Production Line:

1st part:Roots Blower	-Brand: AJMS(GRB 100) -Capacity:5 m3 /minute

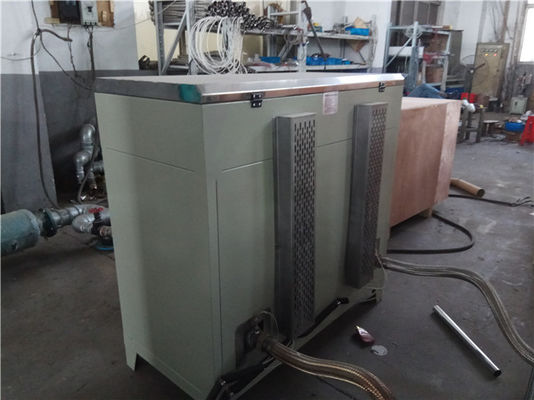

3rd part:Air heating oven	-Heating the compressed air

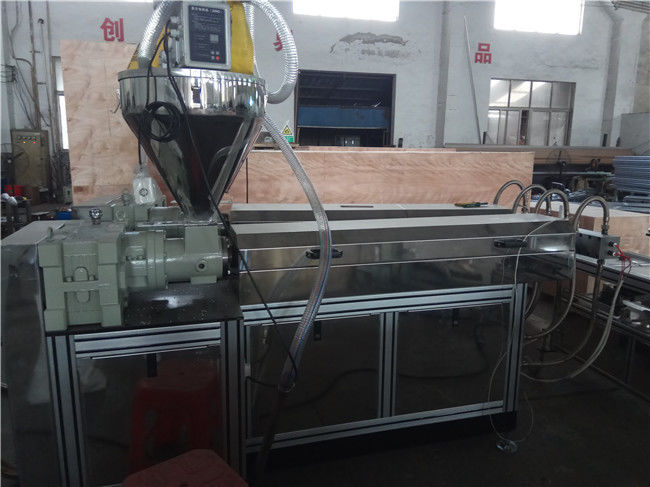

4th-1 part:First Extruder	-Its heating temperature is higherer than second extruder’s temperature 3°C.
4th-2 part:second extruder	-Its heating temperature is lower than first extruder’s temperature 3°C.So,the density of PP is different from two extruders.
5th part:mold	-Its inside with metal filter net. .
6th part:Receiver system	-Receive the sprayed pp material and inform pp filter cartridge on this machine.
7th part:Automatic cutting machine	-Cut filter according to required length

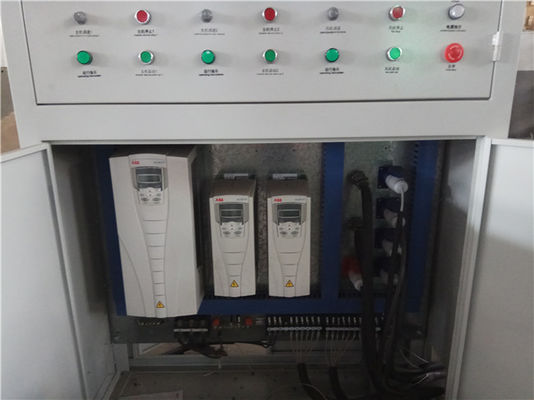

8th part:Large controller	-Large controller Controlls two air heating systems inside of air heating machine with temperature display.
9th part:small controller	-It controls Receiver system
10th part:molds cheaning oven	-Heating moulds so that the residual PP will become carbonization
11th:automatic feeder	-Feeding pp material automatically and dry pp material automatically at the same time
