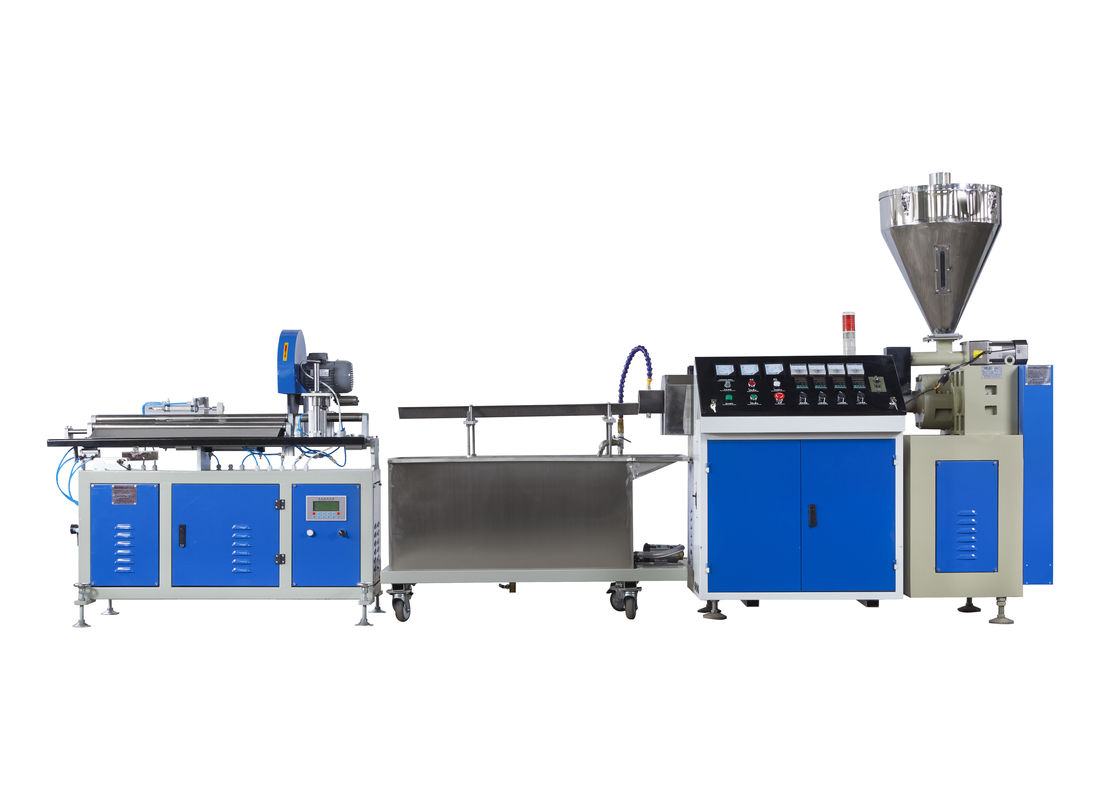

AJMS Brand CTO Block Filter Cartridge Making Machine Rated Power 16.45KW
Production capacity
1pc/min(base on 10*2.5inch)
(Can not use water cooling the carbon cartridge directly,this will wet the cartridge,easily mildew and pollution)
Main features of CTO carbon filter cartridge machine
Adding alert system to monitor the whole production line
Each part produced by famous company.ABB,OMRON,SCHNEIDE
Advantages
1. Whole production is fully automatic,no need people to operate
2. Advanced technology, saving electricity
The parameter of the production line
voltage: 3P/380V/50HZ
Rated power: 16.45 KW
Actual power: 8 KW

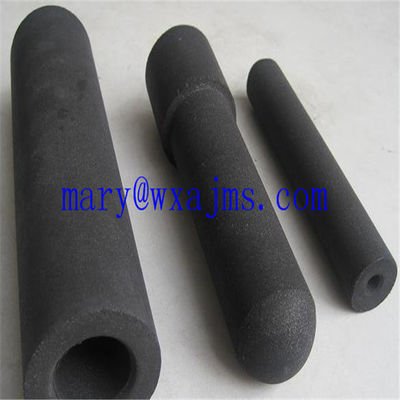

Raw material:
Active Carbon(Granule) and PE Glue(Powder)
Active Carbon percentage is 88%-90%.the other is 10%-12%
Inner diameter:10mm-80mm(default 39 or 40mm)
Outer diameter:20mm-120mm(default 62mm)
Length: 5’’,10’’,20’’,30’’,40’’.............100’’
Machine weight: 1 ton
Mark:One extruder just make one kind of inner diameter and outer diameter.If you want to do other diameter(≤65mm), need to replace barrel and screw,if diameter beyond 65mm,advice big extruder is better

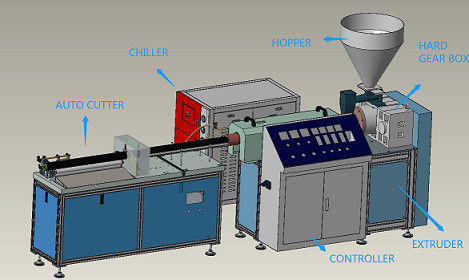

Each Part Description
1.Auto Mixer
Mix raw material, mixing the carbon granules and PE glue powder
Power:3Kw Size:800*800*1300mm Weight:110Kg
Material:304 stainless steel

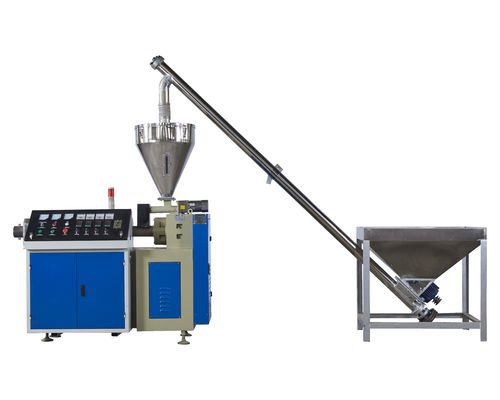

2.Auto Feeder
Feed raw material from mixer into extruder hopper automatically
Power:2.2KW Size:2600*800*2200mm Weight:100Kg
Material:304 stainless steel
3.E-Controller&Extruder
Extrusion&melt mixed material into carbon block filter
Power:9.5Kw(Motor 4Kw, heating 5.5Kw) Size:2250*530*1150mm Weight:350Kg
With alert system monitor the whole production line
Electronic components are from famous companies, such as ABB inverter ,Omron controller,Schneider state
Screw rod material is 38CrMoAl with nitriding and quenching,Hardnes be eaqual or greater than 1500HV
Hard teeth gear box Four heating zones
5.Cooling System
Cool the carbon cartridge temperature and become hard shape
Pump power:0.25Kw Size:1250*600*950mm Weight:100 kg
6.Auto Cutter
Auto Cut the carbon cartridge length
Cutting any length you want,like 5”,10”,20”...
Power:0.75kw Size:1500*650*1250mm Weight:200Kg
Dust collect equipment,seldom dust happen when cutting moment,more clean
| production capacity |
|
1.300mm-400mm/minute if water cool carbon cartridge directly.
2.150mm-200mmminute if you want cool mold directly not cool carbon cartridge.
|
| Main features of CTO carbon filter cartridge machine |
| l good quality |
| 2.each part produced by famous company. |
| l Electric-saving |
|
1. a leading manufacturer,producing the machine for more than 20 years.
2.Advanced technology,saving electric
|
| l Easy operation |
|
1.Our engineers will teach you unit you can operate by yourself.
2.Automatic feed machine and automatic cutting machine.
|
| The parameter of the production line (best energy-saving) |
| Rated power: |
16.45KW |
| Raw material |
Active Carbon(Granule) and PE Gule(Powder)
Active Carbon percentage is 88%-90%.the other is 10%-12%.
|
| Internal diameter(Default) |
9mm-80mm |
|
One extruder just make one kind of inner diameter and outer diameter.
If you want to do other diameter,you need to replace some parts of extruder.
|
| Outer diameter(Default) |
29mm-120mm |
| length |
5’’,10’’,20’’,30’’,40’’.............100’’ |
| Machine weight |
3.9Tons |
| Wastage of material |
10KG material wastage will be needed for starting machine |
| Layout of the whole product line(1.5m*9m) |
| Minimum require 13.5square meter,20-30square meter is better. |
