Name: CE&ISO Approved CTO Active Carbon Block Filter Cartridge Making Machine
Brand: Wuxi AJMS Filter Machinery Co.,Ltd.
SKU: AJMS1802
Price: 15,600.00 USD
Availability: InStock

Home Products CTO Active Carbon Filter Cartridge Machine

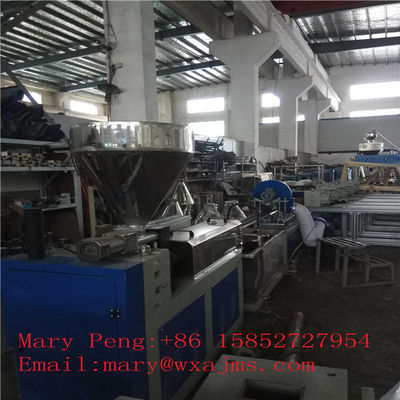

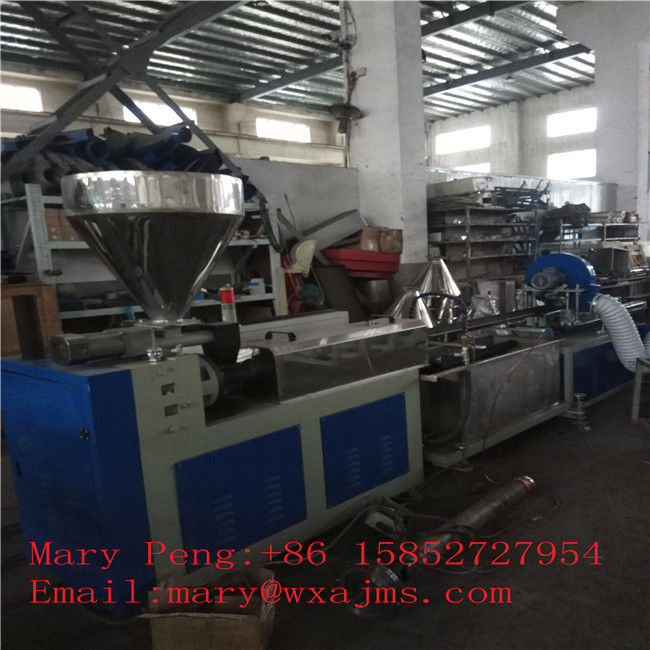

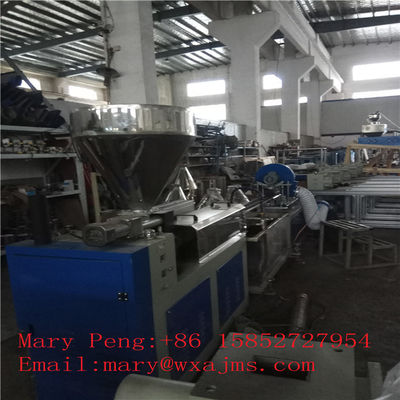

CE&ISO Approved CTO Active Carbon Block Filter Cartridge Making Machine

Product Details:

Place of Origin:	China
Brand Name:	AJMS
Certification:	CE, ISO
Model Number:	AJMS1802

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD14500 - USD16700/ set FOB Shanghai
Packaging Details:	by wooden case.
Delivery Time:	within 20-25 days
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets

Contact Now

Detailed Product Description

Product Name:	CTO Block Cartridge Making Machine	Capacity:	300mm-400mm/min If You Cool Carbon Cartridge Directly
Rated Power:	16.45KW	Actual Power:	8KW
Layout:	12 Square Meters At Least, 20-30 Square Meters Is Better	Raw Material:	Active Carbon + PE Gule Powder
ID:	9mm-80mm	OD:	29mm-120mm
Length:	10", 20", 30"...100"	Weight:	950KG

CE&ISO Approved CTO Active Carbon Block Filter Cartridge Making Machine

Technical Parameters

Production capacity	30-60 mesh Coal carbon production speed 50-53 seconds/pc based on 10’’,ID 38 mm,OD 63 mm.
	80-200 mesh coconut shell carbon production speed 1 minute/pc based on 10’’,ID 38 mm,OD 63 mm.
Install power	17.25 KW
Actual power	8 KW
Raw material	1.coal carbon (30-60 mesh)+LDPE 60-80 mesh (PE Glue powder)
	2.coconut shell carbon (30-60 mesh)+LDPE 60-80 mesh (PE Glue powder)
	3.coconut shell carbon (80-150 mesh /80-200 mesh)+Special glue powder (not LDPE) Now we have used 80-200 mesh coconut shell carbon mixed special glue, Final CTO same with sintering carbon filter for absorbing water, testing after 13 tons water still have 85%-90% remove residual rate.
Inner diameter (ID)	9 mm-80 mm is common,max. arrive 120 mm
Outer diameter (OD)	29-120 mm is common,max.arrive 2000 mm. (OD larger,if ID larger it will better for big diameter production)
Length (mm)	5’’,10’’,20’’,30’’,40’’ (adjustable on auto cutter)
Whole line N.W.	1 ton
Layout	13.5 m2,20-30 m2 is better.
Voltage	Default three phase 380 V,50/60HZ,but ABB inverter accept within 350-450 V.
Description of CTO filters	Used for oil,chemical industry,electronic,medicine,air filtration and food industry
Using life of CTO filters	3-6 months (depands on quality of water)
CTO filters usage	Remove chlorine,chemical,color,odor and micron impurity. (the third filter in water filter machine protect Ro element)
Advantages of the CTO machine	1.Electric-saving
	2.Operation easily
	3.Production speed fast then common original sintering carbon filters production

Operation data of CTO filters

Operation temperature

Filtration life

Max.operation pressure

Max.Flow

4 oC-52 oC

10’’ standard:3-6 months/2500G

10’’ Big blue:4-6 months/5500G

*Depands on water quality

Level of contaminants

100 psi

10’’ standard:2.5GPM

10’’ Big blue:5GPM

(1.5-2 kg/cm2)

Our services

After sale service

1.Spare parts: manufacturer will provide 1 year for free without human factors,spare parts according to spare part list show.

2.Whole life tech guidance.

3.AJMS have 10 exhibitions oversea every year,thus we have feedback plan in clients plant for more future updating.

Installation and training

1.Beofre shipping,our designer engineer will make a detailed installation draft as different clients’s plant situation.

2.Due to different cleints used material,temperature,and plant situation all different: we more advise our engineer group to clients side for intsllationa and trianing.

7-10 days is available,clients only provide the around air tickets,hotel and meal,not need any extra commission. Visa cost AJMS will provide.

3.Clients also could take raw material to us for testing and training.
